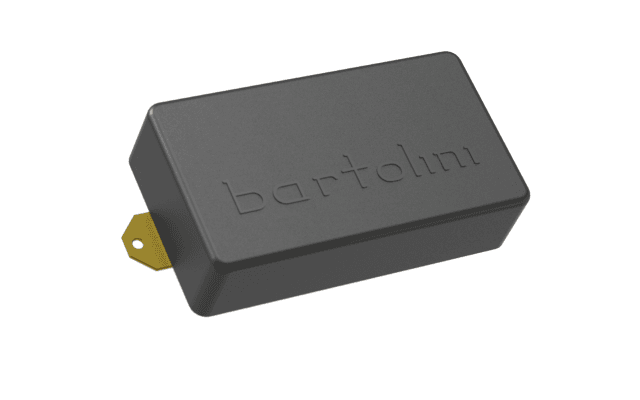

Bartolini Alnico Ceramic Guitar Humbuckers

R2,349.00R2,499.00

Hot vintage tone from a mixed magnetic circuit humbucker

Description

The expanded tonal range and rich harmonics of our ACE pickups are created by combining alnico V blades and ceramic bar magnets for the best of both worlds, producing the hot tone you want from an alnico pickup, balanced with the clarity you expect from ceramic. The string-to-string output is balanced by internal compensation and field shaping. The blade design ensures your tone won’t fade from even the most aggressive bends.

ACE Humbuckers are true pro-level pickups, so of course they are fully shielded against noise from stage lighting and studio equipment. They are sweat-proof and won’t make horrible noises when you touch them like many standard bobbin-style humbuckers. They are wired with shielded 4-conductor cable for coil splitting and series or parallel humbucker wiring.

Their Hot Vintage tone is great for Rock, Progressive, Funk, and Heavy Blues.
ACE Humbuckers come in black or chrome in balanced versions for neck (rhythm) and bridge (treble). Black mounting screws are included (#4-40 x 7/8”)

ACE-H Technical Details

Coil Structure:
Dual Parallel Humbucking
Cable Type:
4-Conductor Cable with shield and bare drain
Magnetic Circuit:
Alnico V blade magnets, carbon steel, brass, and copper reinforced and stabilized by ceramic (ferrite) magnets
projected for focused aperture
Neck coil South and Bridge coil North

ACE-H-70 – Neck

  • DC Resistance: ~7.8KΩ each coil
  • Resonant Frequency: ~3.5KHz
  • Sensing Width: 2.01″ [51mm] Max

ACE-H-75 – Bridge

  • DC Resistance: ~8.7KΩ each coil
  • Resonant Frequency: ~2.9KHz
  • Sensing Width: 2.01″ [51mm] Max

Additional information

Position

Neck, Bridge

Colour

Black, Chrome
