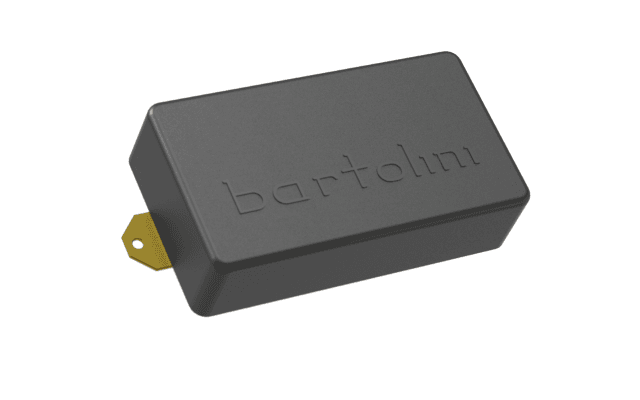

Bartolini Tuck Andress Special Humbucker

R2,583.90

High fidelity, clarity, definition and articulation developed with Jazz virtuoso Tuck Andres

1 in stock

Description

The 1CTA was designed to meet the precise voice and response requirements of virtuoso Jazz guitarist Tuck Andress. It is designed to be noise-free with equal coil windings and full internal brass shielding. The design has a wide sensing aperture and offset magnetic field for brighter yet fuller voice than standard humbuckers.



Since they are blade designs instead of poles, you don’t need to worry about string spacing for even output level from string-to-string. They are sealed to prevent coil contamination from dust and sweat while also eliminating microphonics.

Generally, the 1CTA is installed in the neck position of a Jazz guitar but is also very usable as a bridge pickup. Because of their wide frequency response and low noise, they are perfect for Jazz, but are also very popular for metal and fusion. They are available in white or black and include #4-40 mounting screws.

1CTA Technical Details

Coil Structure:
Dual Parallel Humbucking
Cable Type:
4-Conductor Cable with shield and bare drain
Magnetic Circuit:
Carbon steel and brass powered by imbalanced ceramic (ferrite) magnets
projected for a tight asymmetric field
Neck coil South and Bridge coil North

1CTA Coil Specs

  • DC Resistance: ~4.3KΩ each coil
  • Resonant Frequency: ~4.6KHz
  • Sensing Width: 2.01″ [51mm] Max
