Description

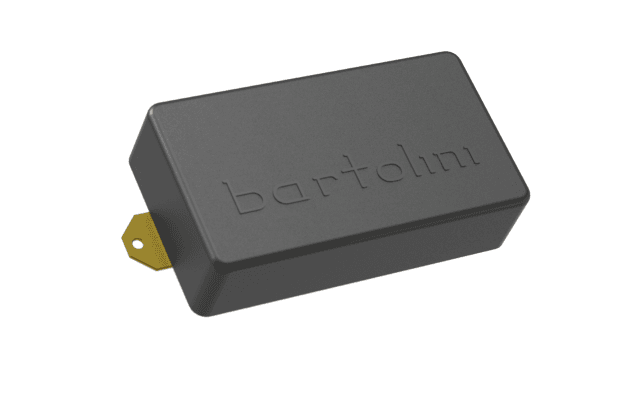

Designed in the Grunge era, the 1D-01 is a thick and dirty humbucker. It has very good mid frequency response and wide sensing aperture for a big voice. As a pro-level pickup, it is fully sealed to be sweat-proof and alcohol-proof. The 1D-01 can be used in the neck or bridge position.
The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring. They are available in black or white and include #4-40 mounting screws.
1D Technical Details
Coil Structure:
Dual Parallel Humbucking
Cable Type:
4-Conductor Cable with shield and bare drain
Magnetic Circuit:
Carbon steel and brass powered by ceramic (ferrite) magnets
projected for asymmetric field
Neck coil South and Bridge coil North
projected for asymmetric field
Neck coil South and Bridge coil North
1D-01 Coil Specs
- DC Resistance: ~3.5KΩ each coil
- Resonant Frequency: ~3.5KHz
- Sensing Width: 2.01″ [51mm] Max
